Phase Shifting Transformer Electromagnetic Model Dedicated for Power System Protection Testing in a Transient Condition
Zapraszamy do lektury artykułu naukowego dra inż. Tomasza Bednarczyka, dra inż. Mateusza Szablickiego, prof. dra hab. inż. Adriana Halinki, dra inż. Piotra Rzepki oraz prof. dra hab. inż. Pawła Sowy opublikowanego w czasopiśmie Energies.

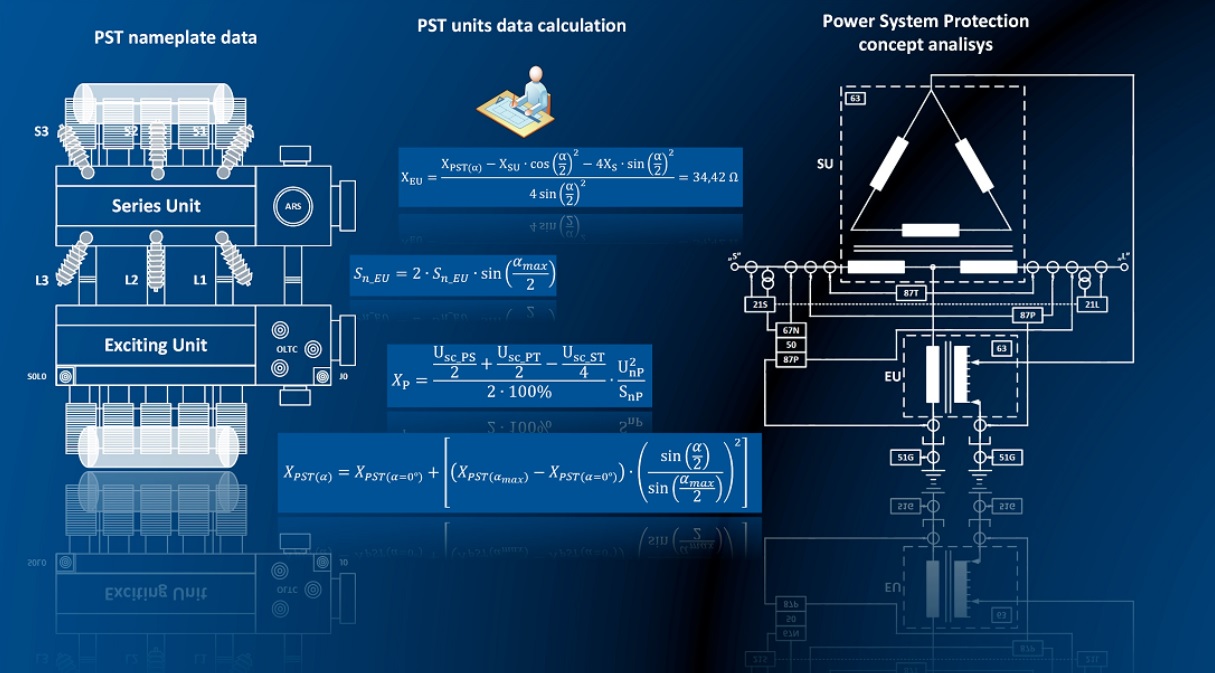

Abstract: Complex phase shifting transformer protection scheme and complexity of the object itself created a need to use simulation programs for their analysis. Often phase shifting transformer (PST) are modeled as a simplified series impedance and quadrature voltage source which cannot be used for power system protection analysis, especially in a transient condition. Therefore, the procedure of building realistic PST model was presented by using available transformer models with calculation of their parameters including interconnections between units. Paper consist calculations based on case study with symmetrical dual-core PST example. Additionally, theoretical background of PST principle, operation, and their impact of power system protection were introduced with numerus examples of PST model verification.
