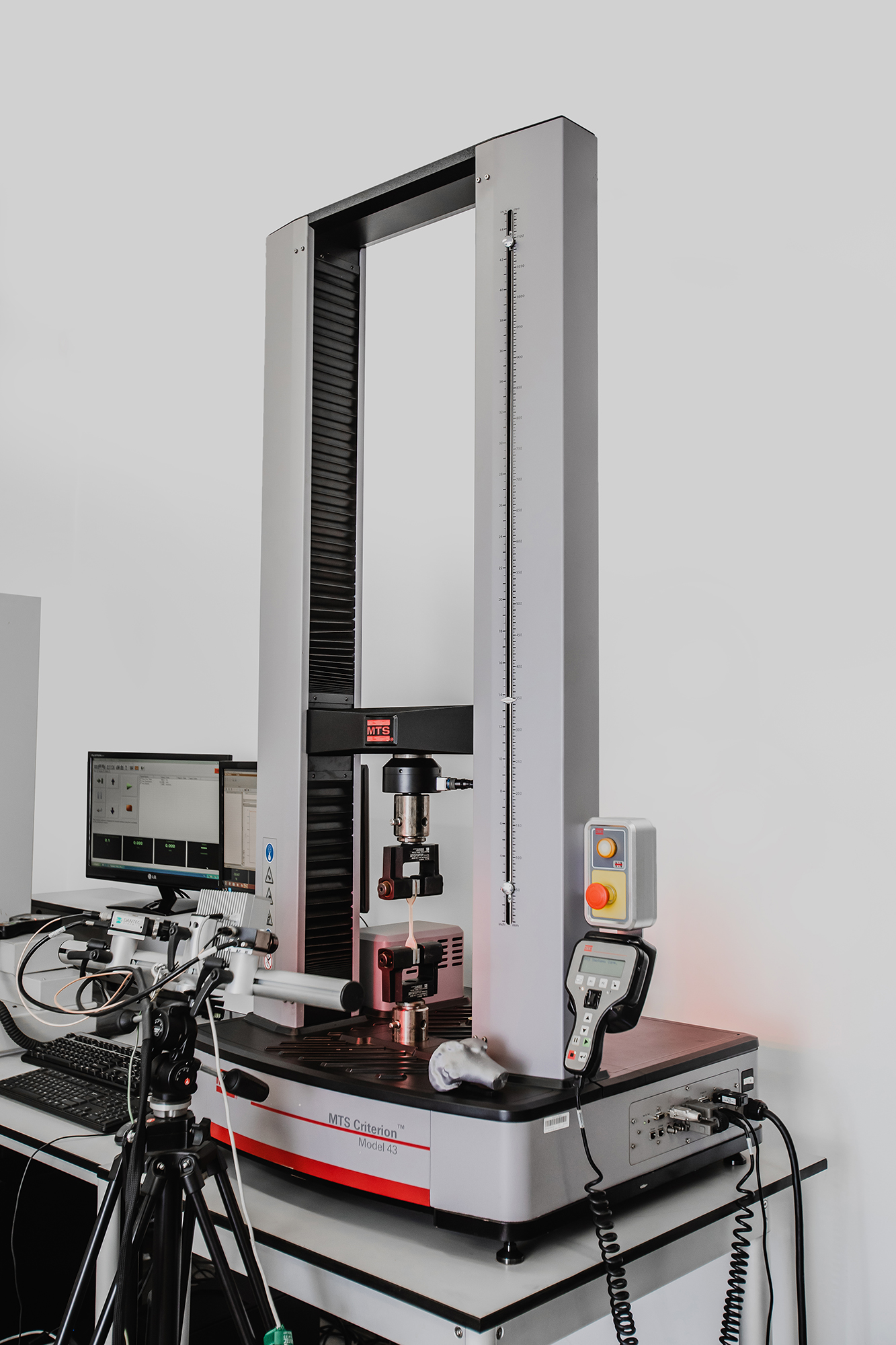

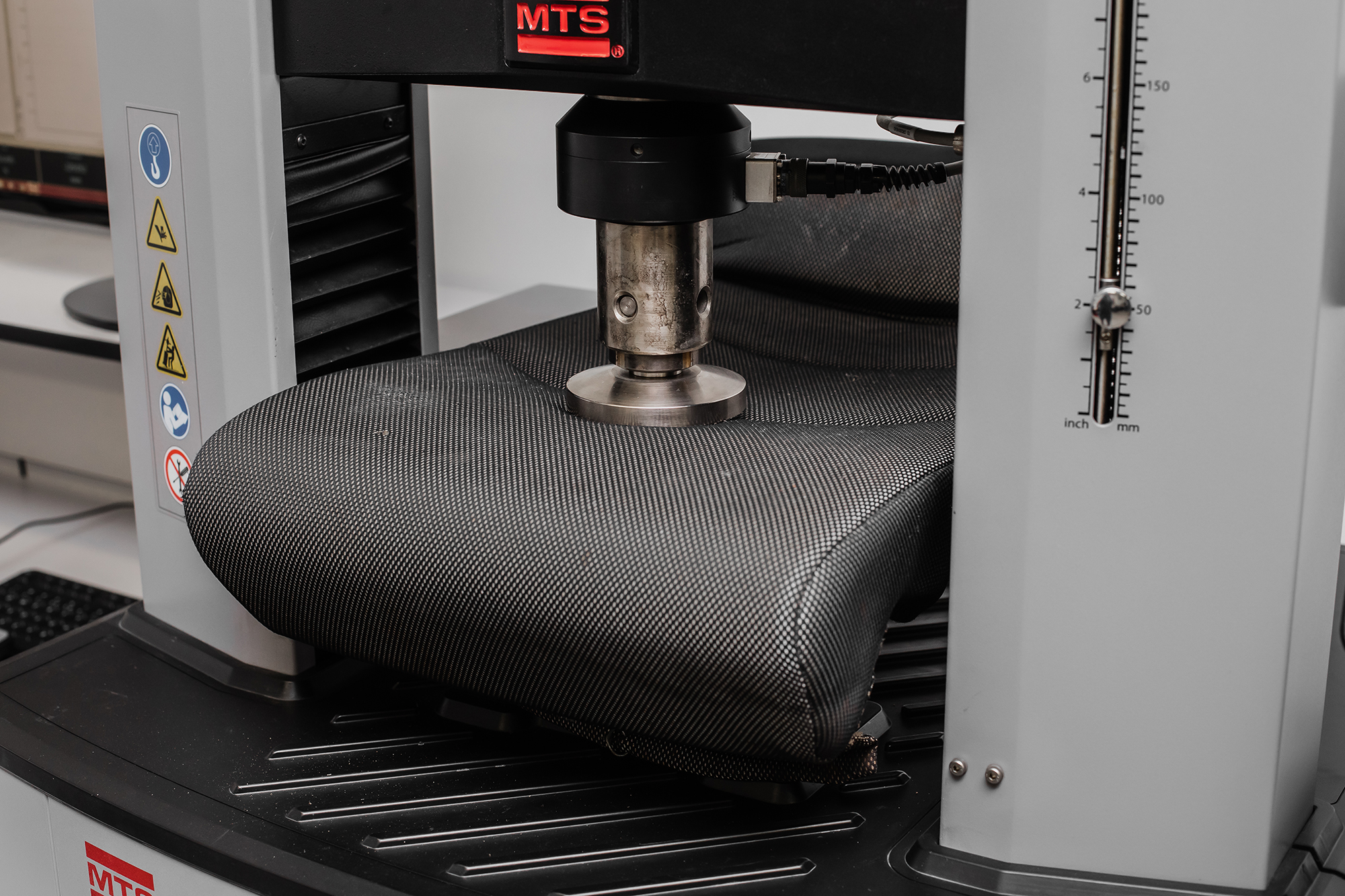

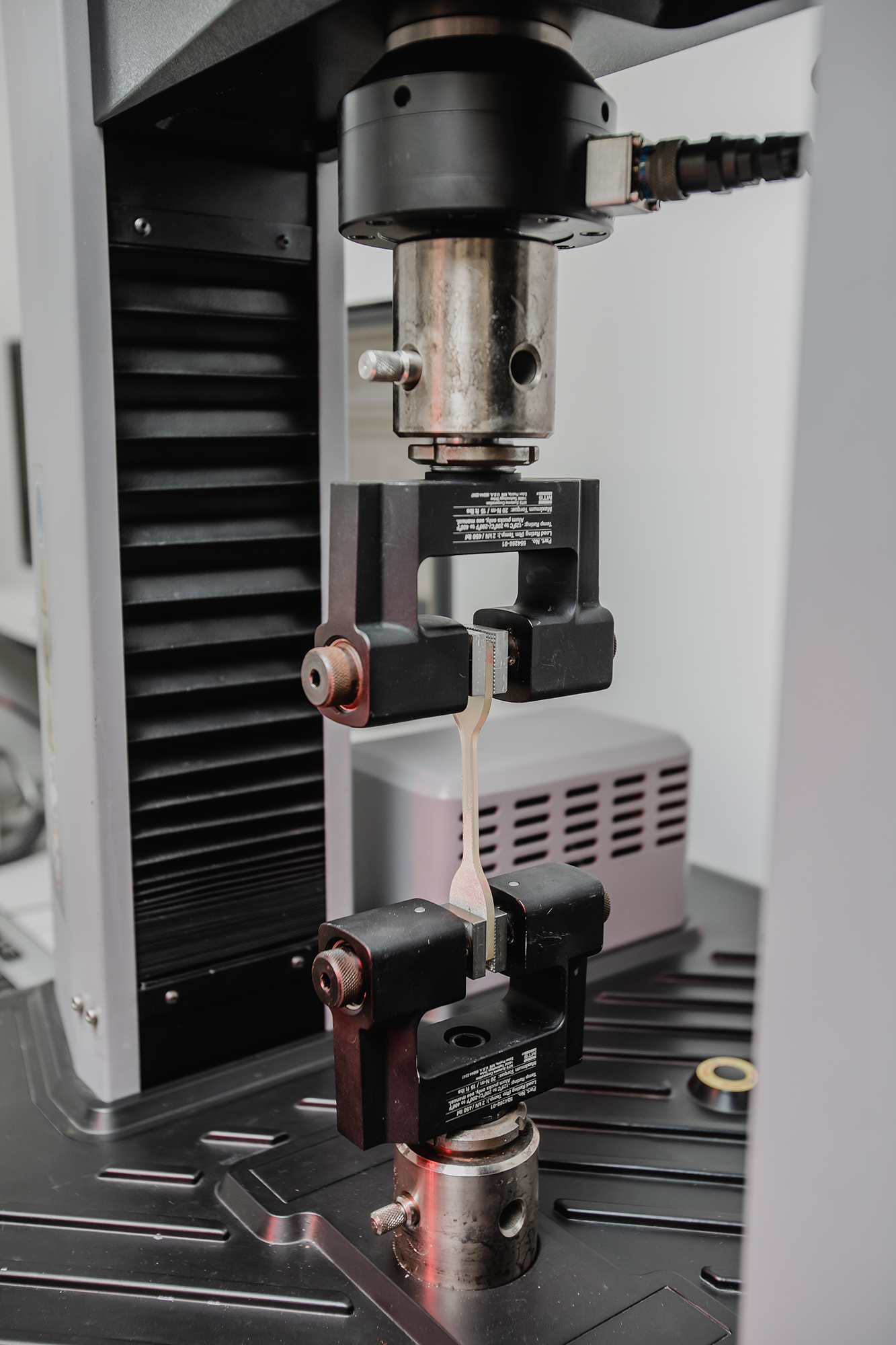

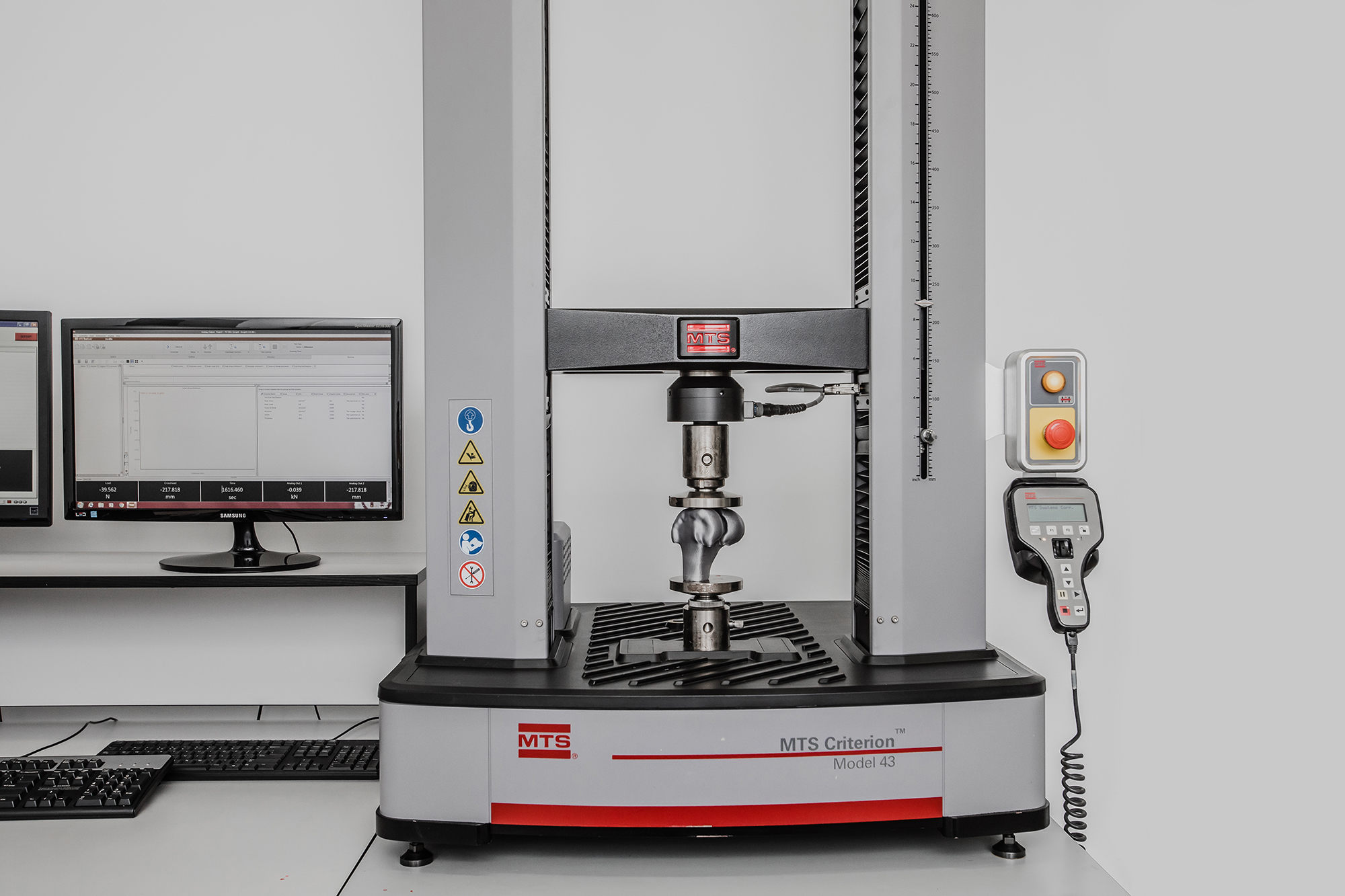

0MTS Criterion Model 43 testing machine for static tensile, compression and bending tests with computer recording of force and elongation measurements. The machine is also equipped with a number of holders and tips for holding samples of various shapes. We perform the tests according to the research standards indicated by the client or based on the client’s individual order. We design the course of the research path for non-standard requirements.
We offer tests:
- from synthetic materials,
- textiles,
- gum,
- wires,
- ropes,
- fasteners,
- threaded connections,
- metal-rubber elements.
Parameters
Measurement range
0 – 30 kN
Diameter dimensions for round samples
3 – 12.7 mm
Accuracy of force indications
1N
Maximum dimensions for flat samples
Width: 25mm | Thickness: 13.2mm | Length: 500mm
